Products Track Light LED Track Light Tutor Plus

Tutor Plus

Colour:

Model No
16047L丨16147L丨16247L
Material
Aluminum material in powdercoating
CCT
2700K丨3000K丨4000K
Watts
5W丨13W丨25W
Lumen
513lm 丨 580lm 丨 638lm
Beam
14° 丨 22° 丨 38°
CRI
>90
Colour
BK 丨 WH 丨 BZ
IP
20

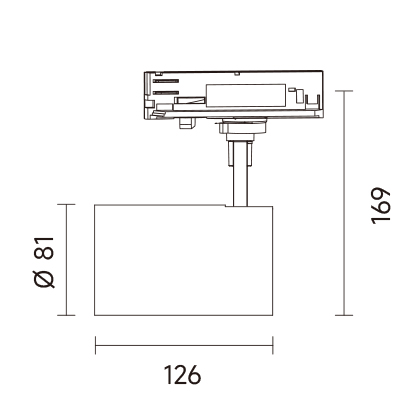

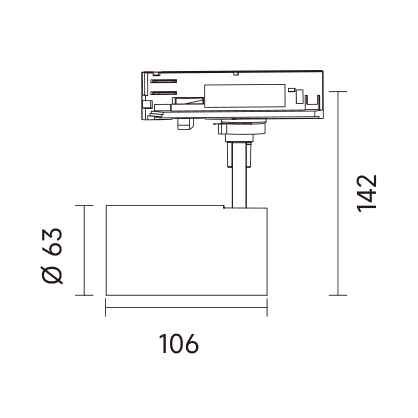

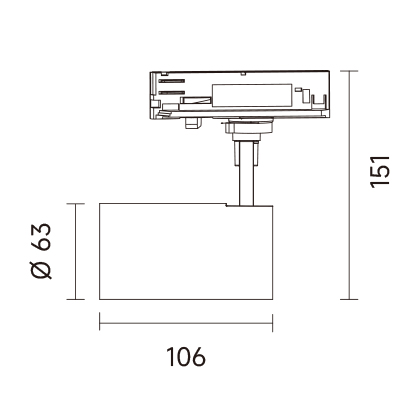

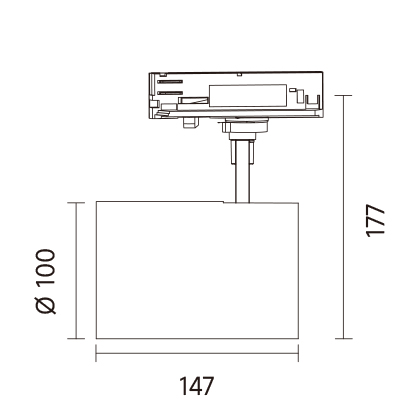

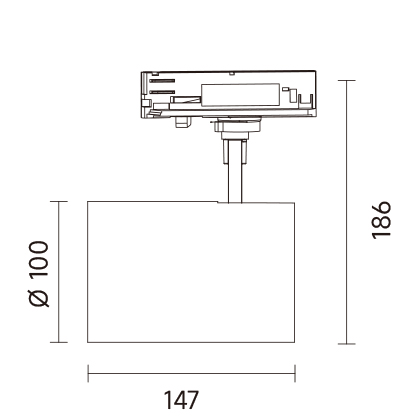

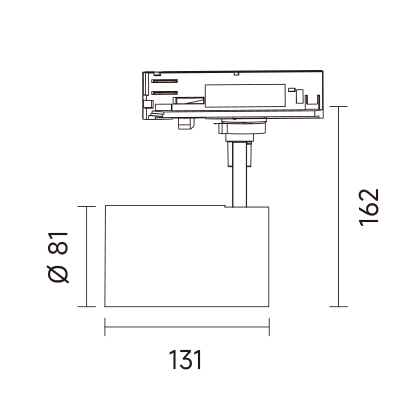

Dimensins:

  • Aluminum material in powdercoating.
  • Lumileds COB, Ra>90, CCT 3000K / 4000K / 5000K in option, 3 SDCM.
  • Build-in driver without track box or Polycarbonate track box with drop-in driver in option.
  • Philips driver, PF>0.95, Triac / 0-10v / DALI in option.
  • Spot / Medium / Flood LENs in option, changeable in the field.
  • Elliptic / Soft light / Frosted focus optic filter in option.
  • Easy change on the accessory by removing the baffle.
  • Black / Soft gold / White baffle in option.
  • 3 phase track and 1 phase track adaptor are available.

Specifications

Model Wattage Lumen CCT CRI Beam
16047L 8W
513lm
580lm
638lm
2700K
3000K
4000K
>90
14°
22°
38°
16147L 13W
870lm
897lm
986lm
2700K
3000K
4000K
>90
16°
22°
42°
16247L 25W
1723lm
1983lm
2181lm
2700K
3000K
4000K
>90
16°
24°
38°
16047P 12W
619lm
721lm
793lm
2700K
3000K
4000K
>90
14°
22°
38°
16147P 20W
1158lm
1194lm
1313lm
2700K
3000K
4000K
>90
16°
22°
42°
16247P 30W
2501lm
2579lm
2836lm
2700K
3000K
4000K
>90
16°
22°
40°
