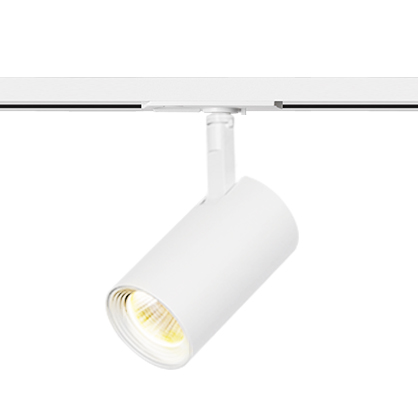

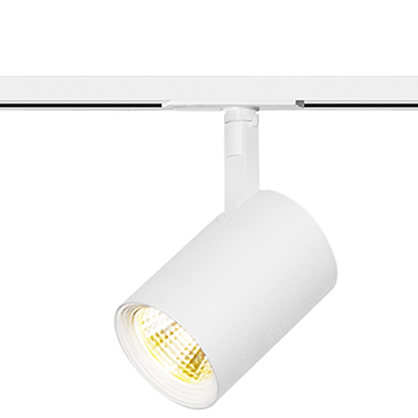

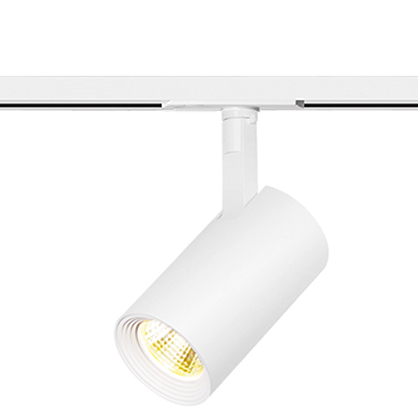

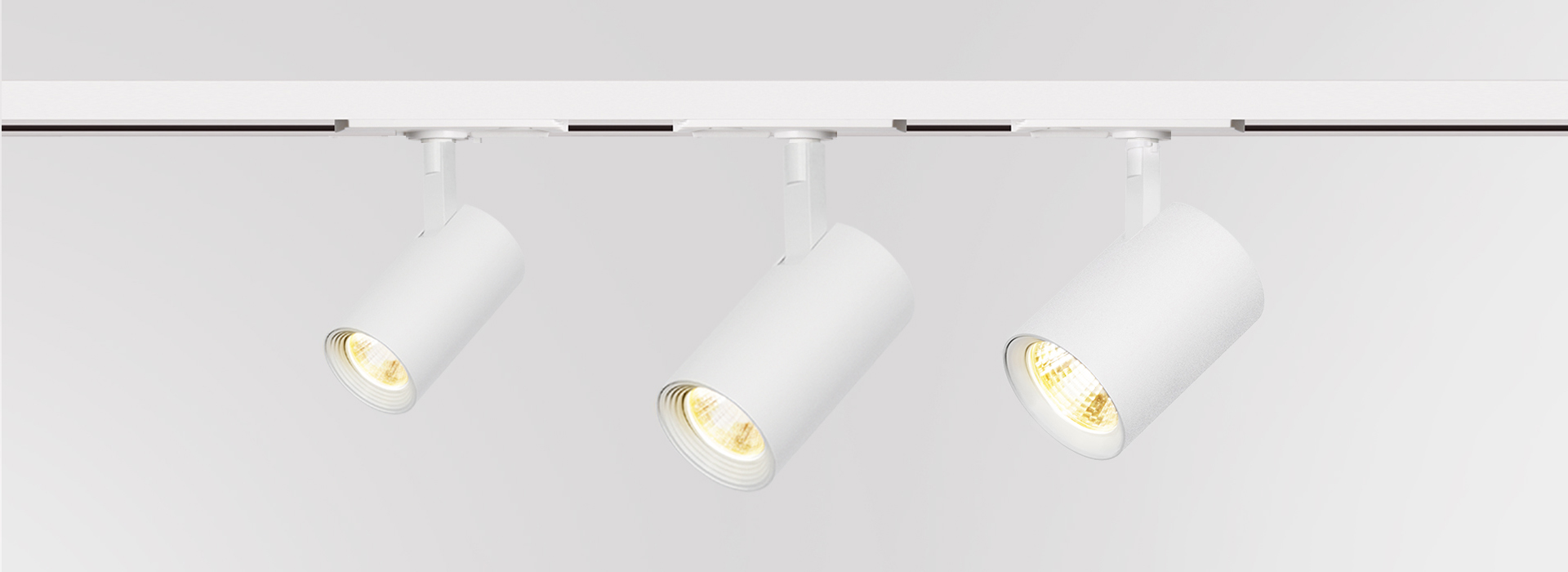

Products Track Light LED Track Light Tutor

Tutor

Colour:

Model No

1604V丨1604N

CCT

2700K 丨 3000K 丨 4000K

Watts

8W

Lumen

590lm 丨 609lm 丨 670lm

Beam

18° 丨 24°

CRI

＞90

Colour

BK 丨 WH 丨 SV

IP

20

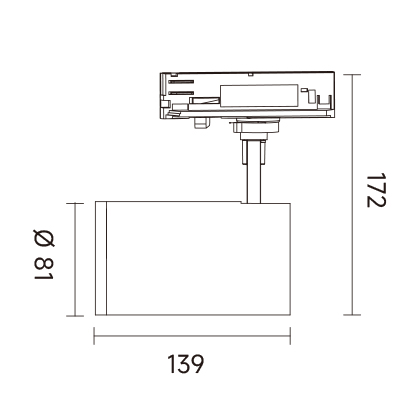

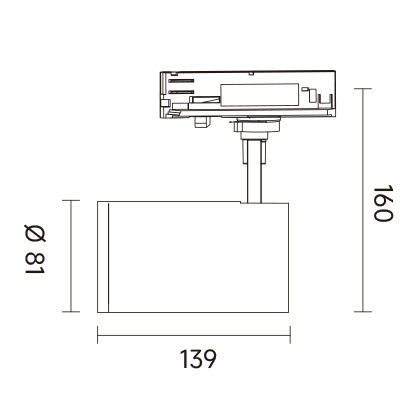

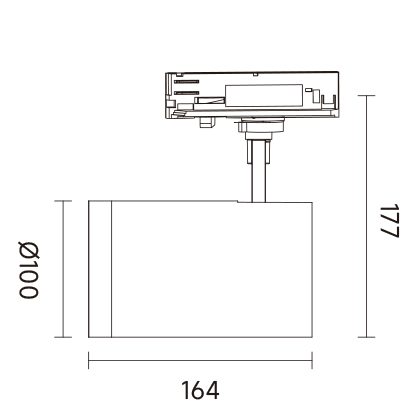

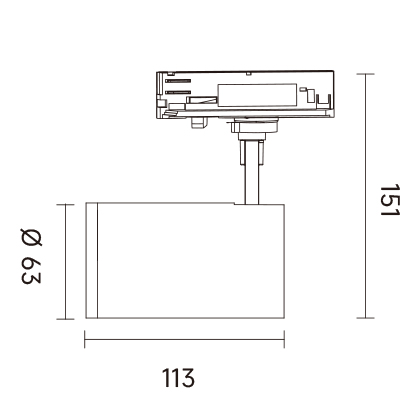

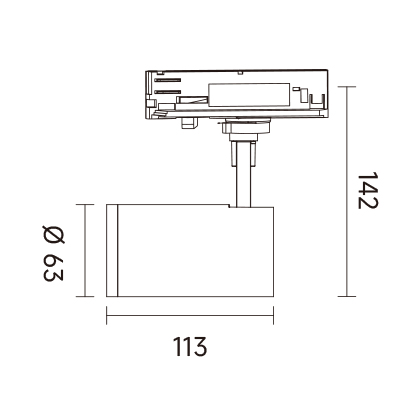

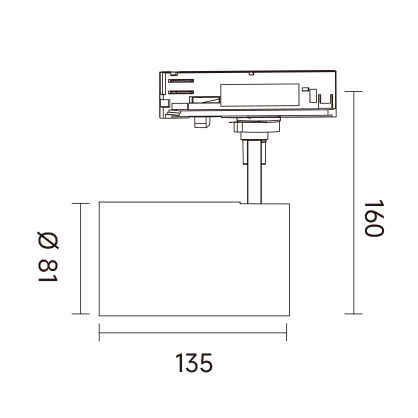

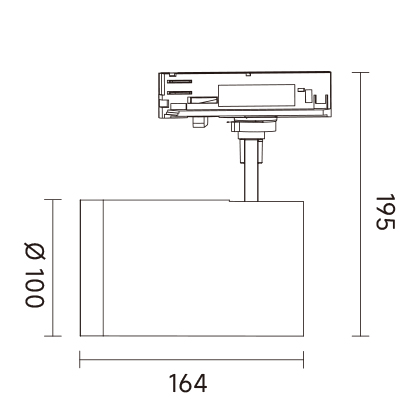

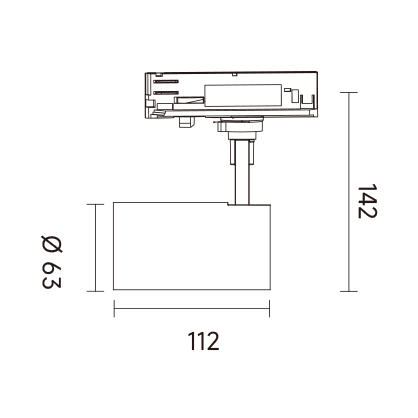

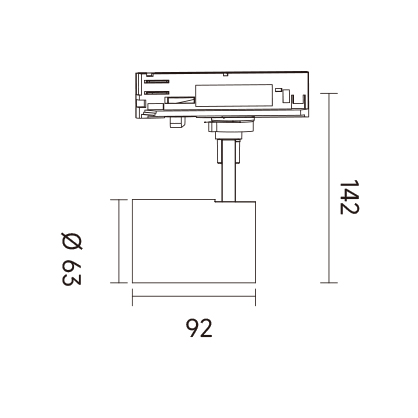

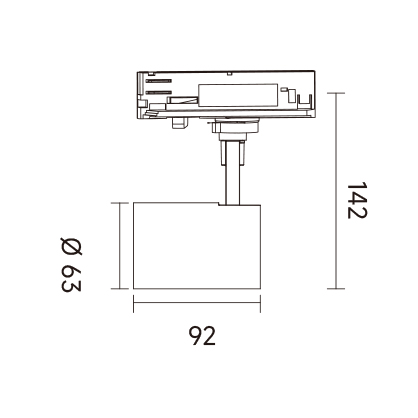

Dimensins:

Lumileds COB, Ra>90, CCT 3000K / 4000K / 5000K in option, 3SDCM .
Build-in driver without track box or Polycarbonate track box with drop-in driver for option.
Philips driver, PF>0.95, Triac / 0-10v / DALI in option.
Spot / Medium / Flood LENs in option, changeable in the field.
Elliptic / Soft light / Frosted focus optic filter in option.
Easy change of the accessory by removing the baffle.
Black / Soft gold / White baffle in option.
3 phase track and 1 phase track adaptor are available.

Specifications

		Model	Wattage	Lumen	CCT	CRI	Beam
		1604V	8W	590lm 609lm 670lm	2700K 3000K 4000K	＞90	18° 24°
		1604N	8W	590lm 609lm 670lm	2700K 3000K 4000K	＞90	18° 24°
		1614N	15W	1230lm 1268lm 1353lm	2700K 3000K 4000K	＞90	16° 32°
		16046L	8W	723lm 746lm 820lm	2700K 3000K 4000K	＞90	18° 24° 34°
		16146L	15W	1428lm 1472lm 1619lm	2700K 3000K 4000K	＞90	14° 22° 38°
		16246L	20W	1897lm 2035lm 2238lm	2700K 3000K 4000K	＞90	16° 22° 40° 56°
		16246L	30W	2655lm 2737lm 3010lm	2700K 3000K 4000K	＞90	16° 22° 40° 56°
		16046P	10W	723lm 745lm 819lm	2700K 3000K 4000K	＞90	18° 24° 34°
		16046P	15W	954lm 984lm 1082lm	2700K 3000K 4000K	＞90	18° 24° 34°
		16146P	10W	845lm 872lm 960lm	2700K 3000K 4000K	＞90	14° 22° 38°
		16146P	15W	1206lm 1243lm 1367lm	2700K 3000K 4000K	＞90	14° 22° 38°
		16146P	20W	1392lm 1435lm 1578lm	2700K 3000K 4000K	＞90	14° 22° 38°
		16246P	20W	1974lm 2035lm 2238lm	2700K 3000K 4000K	＞90	16° 22° 40° 56°
		16246P	30W	2655lm 2737lm 3010lm	2700K 3000K 4000K	＞90	16° 22° 40° 56°
		16246P	40W	4008lm 4132lm 4545lm	2700K 3000K 4000K	＞90	16° 22° 40° 56°
