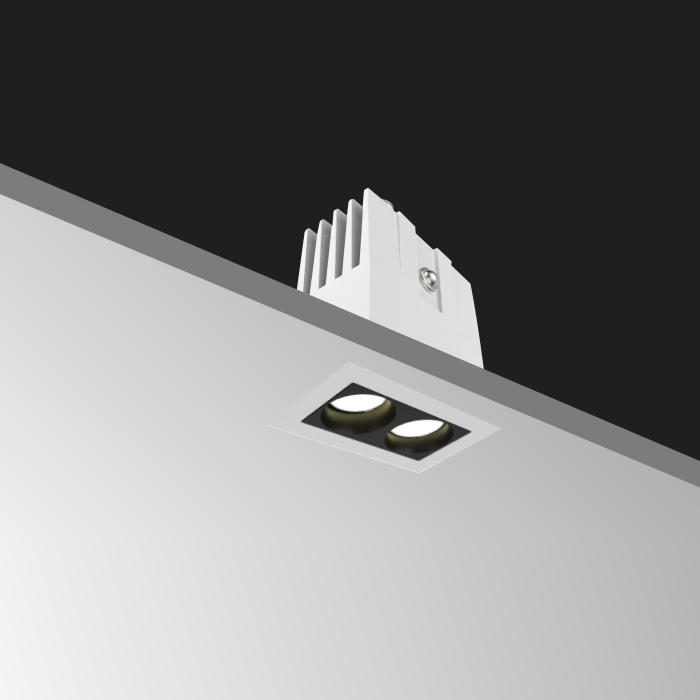

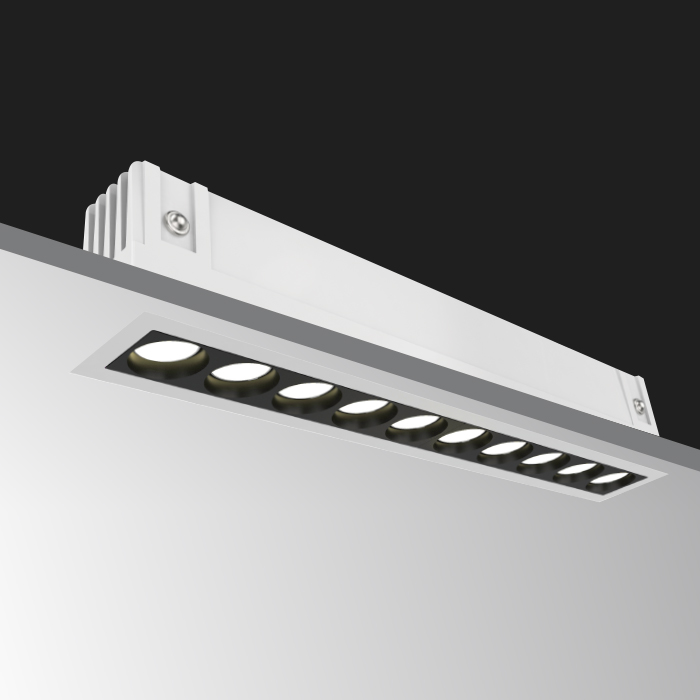

Micro Dot

Colour:

Model No
2003AT丨2003BT丨2003CT丨2003DT
Material
Aluminum
CCT
3000K丨4000K丨5000K
Watts
2W丨4W丨9W丨15W
Lumen
137-1640lm
Beam
12°丨30°丨45°丨60°
CRI
>80丨>90
Colour
WH丨BK丨GY
IP
20

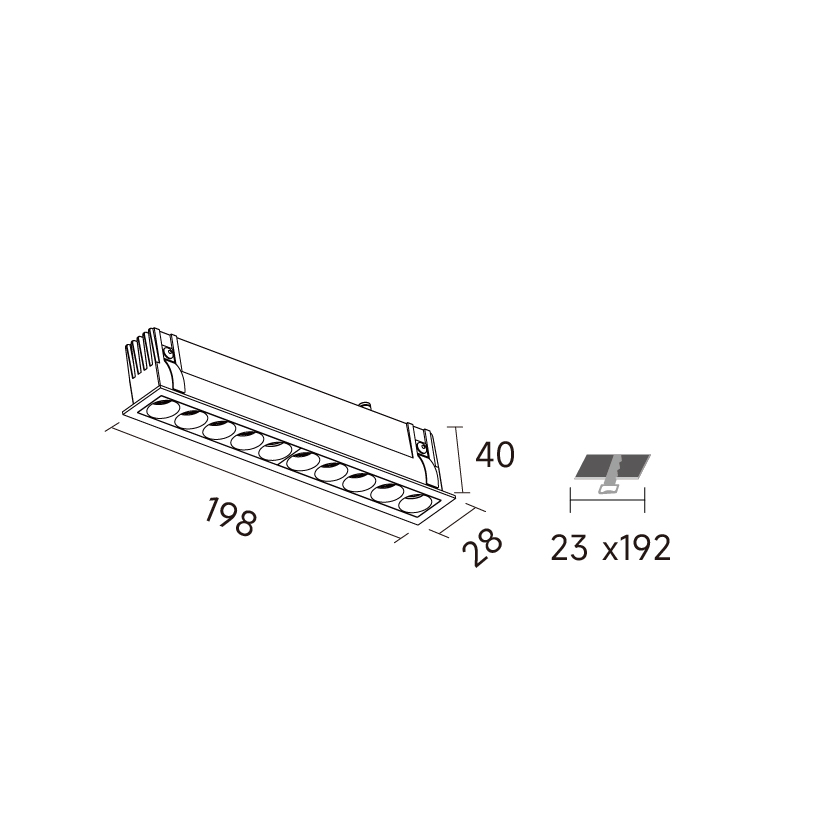

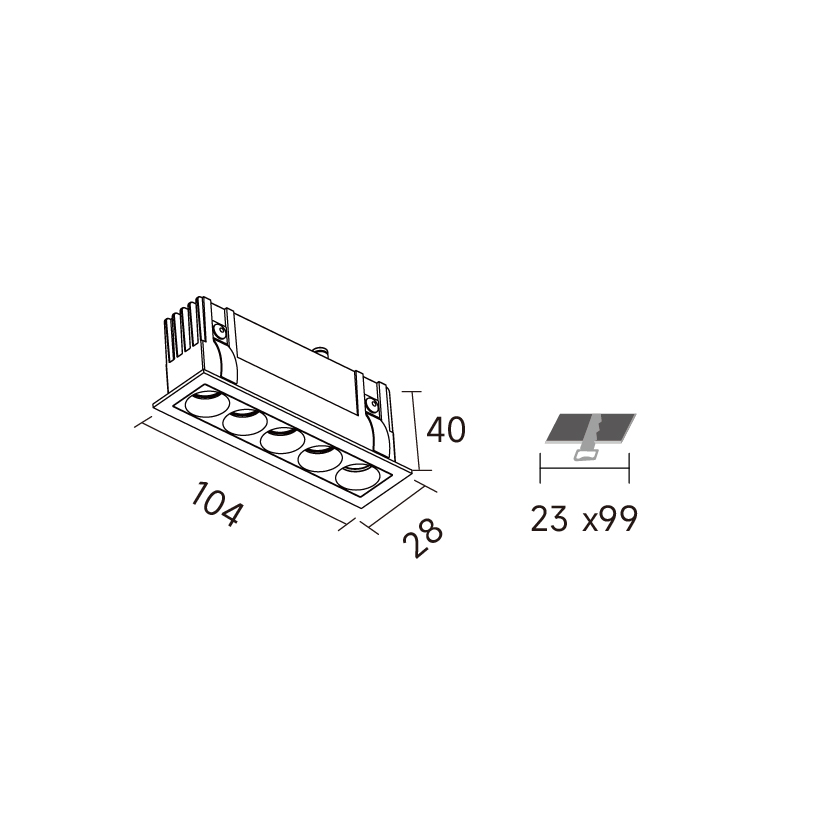

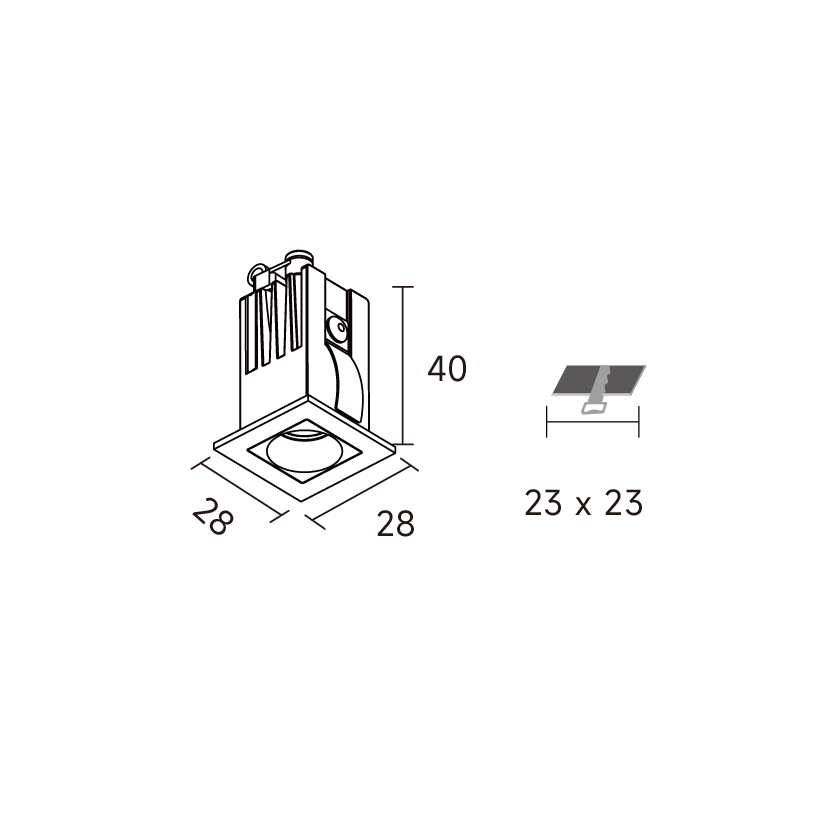

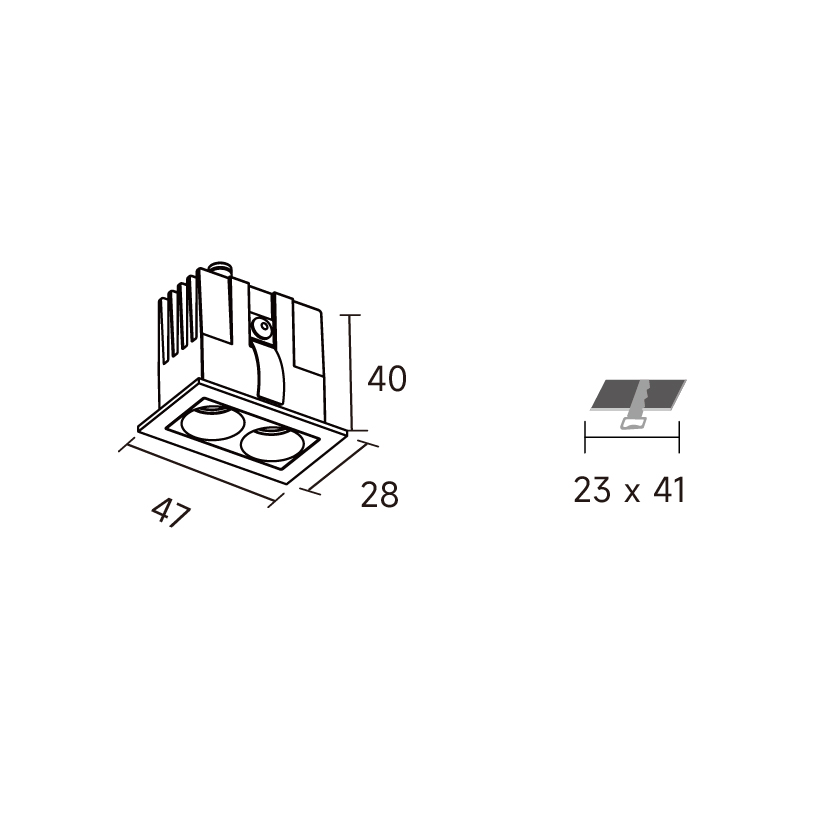

Dimensins:

  • The use of light source retraction design to form secondary optics that makes the light more uniform and soft, it filters light without blocking light, and effectively prevents the generation of glare.
  • It compacts with low power multi-head design. There’re 4 specifications and sizes for selecting to use according to different environmental scenarios.
  • The special ventilation design and heat dissipation structure can control the temperature within the normal working temperature of the LED.
  • The service life is up to 50,000 hours. Good material makes good quality.
  • It’s perfect for corridors, restaurants, retail stores, bookstores, waiting reception areas and other more residential and commercial applications.

Specifications

Model Wattage Lumen CCT CRI Beam
2003AT 2W
137-184lm
3000K
4000K
5000K
>80
>90
12°
30°
45°
60°
2003BT 4W
243-327lm
3000K
4000K
5000K
>80
>90
12°
30°
45°
60°
2003CT 9W
738-992lm
3000K
4000K
5000K
>80
>90
12°
30°
45°
60°
2003DT 15W
1220-1640lm
3000K
4000K
5000K
>80
>90
12°
30°
45°
60°
